Stainless steel, no-niche trench drain systems deliver high-capacity, hygienic drainage for high-solid, high-flow food and beverage processing environments
FoodSafe Drains, a division of Global Drain Technologies and leading provider of hygienic drainage solutions, highlights its engineered line of stainless steel trench drain systems designed specifically for the demanding hygiene, throughput, and traffic requirements of food and beverage processing environments. Unlike off-the-shelf drainage products, FoodSafe Trench Drains are built to meet stringent NSF/ANSI/3-A sanitary standards, while efficiently handling high-volume liquid flow and heavy solids in harsh washdown and production conditions.

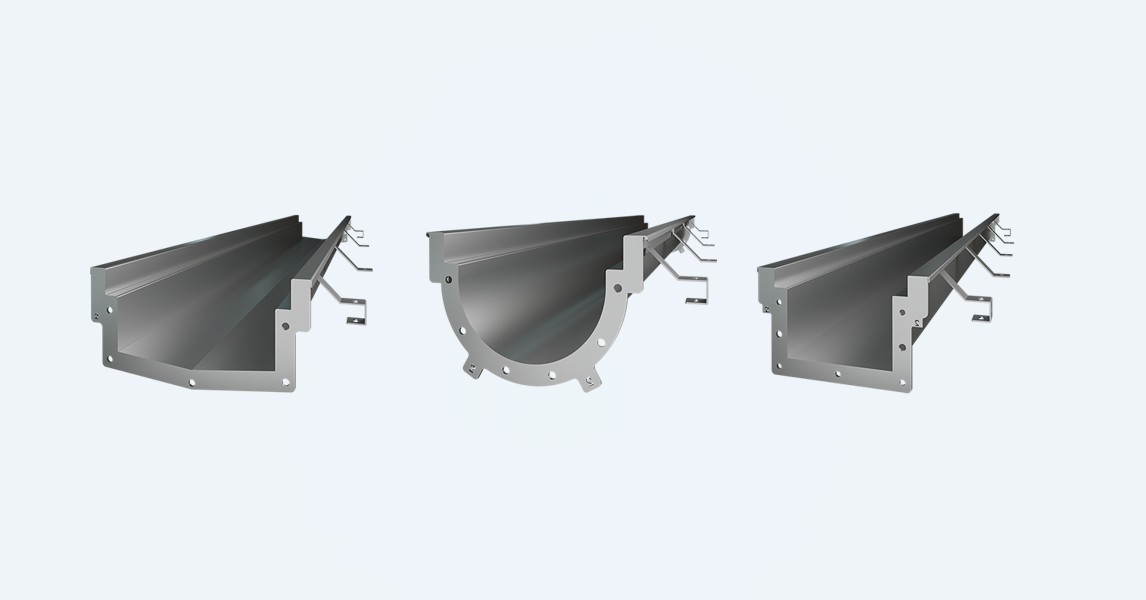

The FoodSafe Drains Trench Drain portfolio includes three primary configurations to address different plant layouts and flow dynamics: The Round Bottom Trench Drain, V-Bottom Trench Drain, and Flat Bottom Trench Drain. The Round Bottom is the flagship hygienic solution, using a radiused bottom to eliminate 90-degree corners and niches where bacteria can harbor, supporting more effective sanitation and compliance with food safety programs. The V-Bottom Trench Drain is suited for high-flow applications where velocity is needed to move solids quickly toward the catch basin, while the Flat Bottom Trench Drain is tailored to facilities that require high-capacity drainage but face depth limitations in the floor structure.
All FoodSafe Trench Drains are manufactured from T304 or T316 stainless steel to deliver long service life, corrosion resistance, and durability under extreme thermal shocks from hot-water and chemical washdowns. Load ratings from Class A through Class E allow engineers to specify systems appropriate for pedestrian areas as well as heavy forklift and pallet jack traffic zones, such as loading docks and main production aisles. Available widths include 6 inch, 8 inch, 10 inch, 12 inch, and 14 inch channels, with flow rates ranging from approximately 83 gallons per minute at 6 inches up to 200 gallons per minute per foot of drain at 14 inches, enabling designers to right-size drainage capacity for high-volume liquid areas.
Hygienic design is central to FoodSafe Round Bottom Trench Drains. The system features a no-niche, cornerless interior geometry that promotes cleanability and helps prevent bacterial growth. All FoodSafe Trench Drain configurations feature an integrated 0.5 percent pre-slope to maintain consistent flow and mitigate standing water that can cause odors and pathogen risks. Custom-manufactured, rattle-free, flush-fitting grates support a safer, trip-free working environment for personnel and material handling equipment, aligning with both safety and sanitation goals on the plant floor.
FoodSafe Trench Drains are engineered to work seamlessly with FoodSafe Catch Basins, Strainers, and accessories to streamline installation and maintenance. The open-top design allows straightforward visual inspection, and the pre-sloped bottom supports clean-in-place style washdowns using specialized cleaning paddles and brushes. To reduce manual labor and downtime traditionally associated with trench drain cleaning. Optional tools such as the Trench Hog, a quick-connect funnel that enables tanks and hoses to discharge directly into the drain, help keep floors drier and safer during high-flow operations.
FoodSafe Trench Drains are well suited for high-solid applications such as meat processing, vegetable packing, and bakery operations where large quantities of food debris must be conveyed through the drainage system without clogging. In addition, the systems are ideal for high-volume liquid environments including dairies, breweries, and bottling plants that require rapid evacuation of process water, cleaning solutions, and spills to support continuous production. Heavy-traffic zones, including loading docks and central production aisles, also benefit from the combination of robust load ratings, hygienic construction, and safe, stable grating.
Engineers, plant managers, and sanitation teams looking to upgrade drainage in new or existing food and beverage facilities can specify FoodSafe Trench Drains as part of a comprehensive hygienic floor drainage strategy. By combining high-capacity flow performance, hygienic design, and compatibility with existing FoodSafe Catch Basins and accessories, these trench drain systems help reduce contamination risks, improve worker safety, and support long-term reliability in demanding processing environments.
For more information, visit https://foodsafedrains.com/trench-drain-systems/.
